High Temperature Alerts - Fridge mechanical performance issues

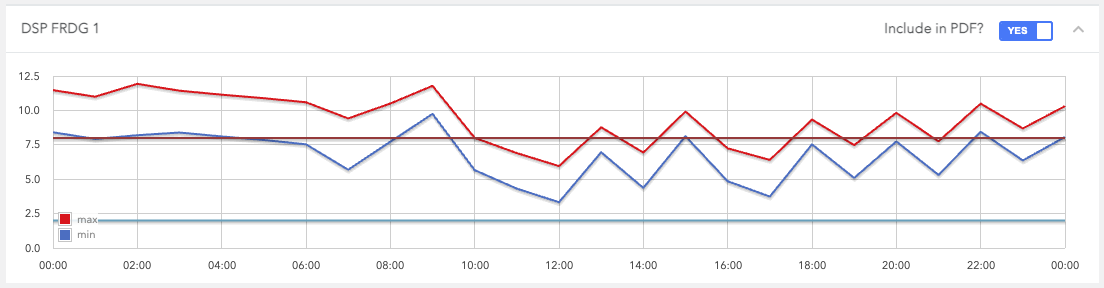

The chart below indicates that there is very little temperature divergence throughout this refrigerator – this is a well packed refrigerator (ideal air circulation) experiencing mechanical performance issues (both the Blue and Red lines are consistently above the desired temperature range with very little divergence between the temperature readings of the Top and Bottom temperature sensors)
What to do?
a. Ensure that there is uninterrupted power supplied to the refrigerator.
b. Check that the thermostat setting has not been inadvertently changed.
c. Ensure that the back of the refrigerator is not pushed flush against a surface or wall.
d. Ensure that there is a gap of 5-10cm all around the refrigerator.
e. Ensure that the condenser radiator is regularly cleaned (once a month);
